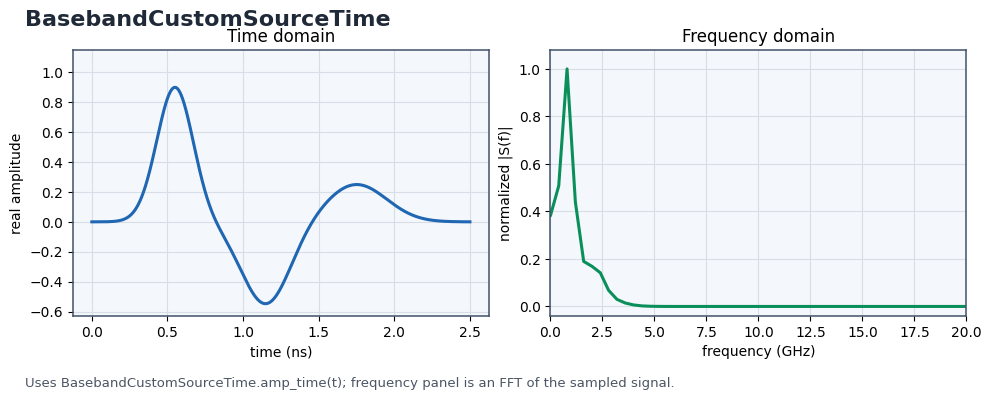

BasebandCustomSourceTime

BasebandCustomSourceTime uses a user-supplied real baseband waveform with no carrier modulation.

Formula

Let $E(t)$ be the real envelope stored in source_time_dataset. The source is:

$s(t) = A E(t)$

The envelope is interpolated to simulation time steps. Values outside the provided time range use the nearest endpoint value.

Parameters

source_time_dataset: Dataset defining the real baseband waveform $E(t)$.

• Required field

amplitude: Real-valued amplitude scaling factor.

• Default: 1

phase: Locked to 0 for baseband source times.
